ClearChem Diagnostics General Chemistry Analyzers

From the choice of equipment to installation costs, setting up or upgrading a laboratory and its equipment can be daunting. To help in cost containment,   ClearChem's expert-trained service staff offers high-quality, like-new refurbished instruments and ancillary equipment for the entire laboratory. All of our equipment is licensed and certified to guarantee satisfaction and comes with a full one-year warranty.

Beckman Coulter AU Series Chemistry Analyzers

These fast, powerful and precise analyzers boast high throughput, very low sample volumes, and unparalleled ease of use. The Beckman Coulter (Formerly Olympus) analyzers are open channeled systems, and when combined with the ClearChem line of chemistry reagents, provide the laboratory the ability to run either serum or urine with a menu rivaling any large reference laboratory at a fraction of the cost.

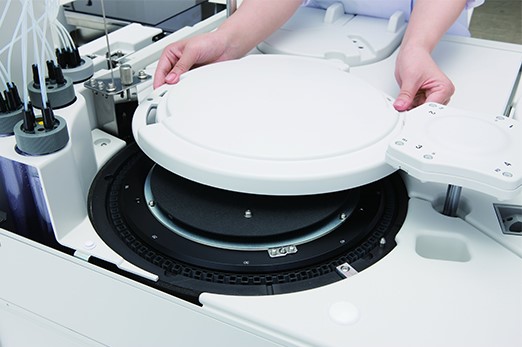

Beckman Coulter AU400e Chemistry Analyzer

Analyzer Description

The Beckman Coulter AU400e Chemistry Analyzer is a fully automated chemistry analyzer designed for operating ease, speed, and flexibility. It uses liquid, barcoded reagents and user-friendly Microsoft Windows software. The operator is assured a fast turnaround time for response panels, maximum 800 tests per hour with the ISE, 400 tests per hour photometric.

General Characteristics

Only Olympus standardizes chemistry testing for low to very high volume laboratories. This translates to higher productivity, increased efficiency and greater cost savings for your lab.

Fast and reliable turnaround times

  • Up to 400 photometric tests per hour and up to 800 tests per hour with electrolytes.
  • Immediate STAT interrupt with HCFA basic metabolic eight test panel results available within five minutes.

Walk away design saves operator time

  • 80-sample rack loading for peak workloads
  • 22-sample carousel for STAT
  • Direct tube sampling for 3.0, 5.0, 7.0, 10.0 mL primary tubes and pediatric cups
  • Mixed bar code capability
  • Automated reflex and repeat testing
  • Automated pre-dilution for urine and other specimens

Automated reagent handling

  • ClearChem reagents are liquid and ready-to-use
  • Barcoded cartridges provides on-board management (random placement, on-board stability and calibration tracking)
  • All 76 R1/R2 reagent positions are open
  • State-of-the-art Advanced Calibration stores up to 5 calibration curves per test
  • Reagent Inventory predicts shortfalls by comparing on-board reagent versus average daily workloads
  • Automatic changeover from empty to fresh bottle

Efficient review of results

  • Choice of QC trending: Westgard multi-rule procedure, Twin plots, Levey-Jennings daily and day-to-day plots
  • Search function to retrieve data by individual sample and type of test (up to 30,000 patient files)
  • User-definable flags for abnormal results

Precision engineering for reliability and accuracy

  • Capacitance liquid level detection to ensure accurate pipetting for reagents and specimens
  • Clot detection and crash prevention for probes
  • Exclusive spot photometric technology for precision optics

User-friendly Windows NT software simplifies training & operation

  • Drop-down menus, icons, color-keyed graphics
  • User Menu to customize operation
    Operator's Guide with links, search, and bookmarks
  • Software capabilities support CLIA, NCCLS, and CAP compliance
  • Computer-displayed maintenance videos
  • Modem-linked Technical Support for access to Olympus experts

Maintenance: Automated for minimum operator time

  • Programmable start-up
  • Automated washes and checks
  • Olympus dry-bath technology means no water bath maintenance
  • Minimum disposables:
    • Permanent glass cuvettes
    • ISE electrodes are warranted for six months
    • No sample or reagent tips to replace
Beckman Coulter AU480e Chemistry Analyzer
AU480 Chemistry Analyzer

Reach a representative at (714) 734-8041, or email us with any questions!

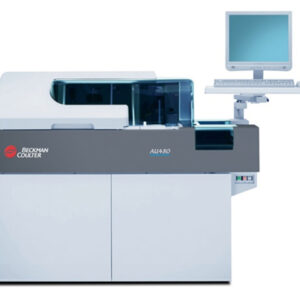

Beckman Coulter AU480 Automated Chemistry Analyzer

Analyzer Description

The Beckman Coulter AU480 Automated Chemistry Analyzer is ideal as a primary chemistry analyzer for small to medium-size hospitals and laboratories or as a dedicated specialty analyzer for larger institutions. Automate and consolidate chemistry testing with ClearChem's 130 test menu including chemistry, urine chemistry, specific proteins, esoteric chemistries and tests for therapeutic drug monitoring, drugs-of-abuse, and thyroid function. With random access throughput of up to 400 photometric tests per hour (up to 800 with electrolytes), on-board menu of over 63 tests and user-definable sample handling options, the AU480 delivers efficiency for real world lab needs.

General Characteristics

Standardization
Only Olympus standardizes chemistry testing for low to very high-volume laboratories. This provides greater productivity, increased efficiency and lower cost for your lab.

Fast and reliable turnaround times

  • Up to 400 photometric tests per hour and up to 800 tests per hour with electrolytes
  • Immediate STAT interrupt that gives you basic metabolic eight test panel results within five minutes

Walk away design saves operator time

  • 80-sample rack loading for peak workloads with continuous loading capability
  • 22-sample STAT carousel
  • Direct tube sampling for 3.0, 5.0, 7.0, 10.0 mL primary tubes and pediatric micro cup option
  • Multiple bar code capability provides easier and faster calibration with lower cost
  • Enhanced, reflex and repeat testing
  • Automated pre-dilution for urine and other specimens
  • Open design for direct connectivity to many lab automation systems

Automated reagent handling

  • ClearChem reagents are liquid and ready-to-use
  • Barcoded cartridges provide automated reagent management (on-board stability, expiration and calibration tracking)
  • All 76 R1, R2 reagent positions are open for random cartridge placement
    State-of-the-art Advanced Calibration stores multiple calibration curves per test
  • Reagent Inventory management alerts operator by comparing on-board reagent test volume versus average daily workload
    Automatic changeover from empty to fresh bottle
  • Multiple sized reagent cartridges hold from 100 to 6000+ tests to meet the needs of the laboratory

Efficient review of results

  • Choice of QC trending
    Westgard multi-rule procedure, Twin plots, Levey-Jennings daily and day-to-day plots
  • Search function to retrieve data by individual sample and type of test (up to 100,000 patient files)
  • User-definable flags for abnormal results

Precision engineering for reliability and accuracy

  • Capacitance liquid level detection to ensure accurate pipetting for reagents and specimens
  • Clot detection and removal for sample probes
  • Crash protection for sample and reagent probes
    Exclusive spot photometric technology for precision enhanced optics
  • Micro sampling capabilities for pediatric and other special samples

User-friendly Windows XP software: Helps reduce training time

  • Single Screen system check: at-a-glance graphic dashboard for monitoring system status
  • Universal descriptive icons and color-keyed graphics
  • Customized User Menu: simplifies training and operation by staff
  • Online Operator's Guide and video: reinforce training with links, search and bookmarks
  • Software capabilities support CLIA, NCCLS and CAP compliance
  • Computer-displayed maintenance videos

Web-based services: Eliminates paperwork and increases reliability

  • SUPPORTVISION® remote diagnostics for virtual on-site support
  • Olympus Partner Advantage provides technical resource access, on-line product training with reagent ordering and tracking capability.

Maintenance: Automated for operational cost reduction

  • Five (5) minutes average daily operator maintenance
  • Programmable power-on and start-up
  • Advanced calibration: stores up to five calibration curves per test
  • Automated cleaning and system checks
  • Olympus dry-bath technology means no water bath maintenance
  • Minimum disposables:
    • Permanent glass cuvettes
    • ISE electrodes are warranted for six months
    • No sample or reagent tips to replace
Beckman Coulter AU480e Chemistry Analyzer
AU480 Chemistry Analyzer

Reach a representative at (714) 734-8068, or email us with any questions!

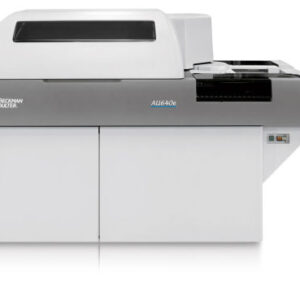

Beckman Coulter AU640e Automated Chemistry Analyzer

Analyzer Description

The Beckman Coulter AU640e Automated Chemistry Analyzer is a fully automated chemistry analyzer designed for operating ease, speed, and flexibility. It uses liquid, barcoded reagents and user-friendly Microsoft Windows software. The operator is assured a fast turnaround time for response panels, maximum 1200 tests per hour with the ISE, 600 tests per hour photometric.

General Characteristics

Standardization
Only Olympus standardizes chemistry testing for low to very high-volume laboratories. This translates to higher productivity, increased efficiency and greater cost savings for your lab.

Fast and reliable turnaround times

  • Up to 800 photometric tests per hour and up to 1,200 tests per hour with electrolytes
  • Immediate STAT interrupt with HCFA basic metabolic eight test panel results available within five minutes

Walk away design saves operator time

  • 150-sample rack loading for peak workloads
  • 22-sample carousel for STAT
  • Direct tube sampling for 3.0, 5.0, 7.0, 10.0 mL primary tubes and pediatric cups
  • Mixed bar code capability
  • Automated reflex and repeat testing
  • Automated pre-dilution for urine and other specimens

Automated reagent handling

  • ClearChem reagents are liquid and ready-to-use
  • Barcoded cartridges provide automated reagent management (on-board stability, expiration and calibration tracking)
  • All 48 R1 and 48 R2 reagent positions are open for random cartridge placement
  • State-of-the-art Advanced Calibration stores up to 5 calibration curves per test
  • Reagent Inventory predicts shortfalls by comparing on-board
  • reagent versus average daily workloads
  • Automatic changeover from empty to fresh bottle

Efficient review of results

  • Choice of QC trending
    Westgard multi-rule procedure, Twin plots, Levey-Jennings daily and day-to-day plots
  • Search function to retrieve data by individual sample and type of test (up to 30,000 patient files)
  • User-definable flags for abnormal results

Precision engineering for reliability and accuracy

  • Capacitance liquid level detection to ensure accurate pipetting for reagents and specimens
  • Clot detection and removal for sample probes
  • Exclusive spot photometric technology for precision enhanced optics

User-friendly Windows XP software: Helps reduce training time

  • Drop-down menus, icons, color-keyed graphics
  • User Menu to customize operation
  • Operator's Guide with links, search, and bookmarks
  • Software capabilities support CLIA, NCCLS, and CAP compliance
  • Computer-displayed maintenance videos
  • Modem-linked Technical Support for access to Olympus experts

Maintenance: Automated for operational cost reduction

  • Five (5) minutes average daily operator maintenance
  • Programmable power-on and start-up
  • Advanced calibration: stores up to five calibration curves per test
  • Automated cleaning and system checks
  • Olympus dry-bath technology means no water bath maintenance
  • Minimum disposables:
    • Permanent glass cuvettes
    • No sample or reagent tips to replace
Beckman Coulter AU640e Automated Chemistry Analyzer
AU480 Chemistry Analyzer

Reach a representative at (714) 734-8068, or email us with any questions!

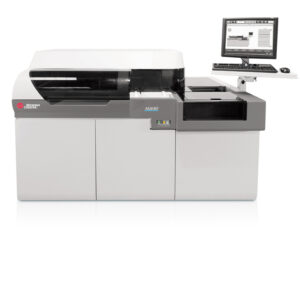

Beckman Coulter AU680e Automated Chemistry Analyzer

Analyzer Description

The AU680 Automated Chemistry Analyzer is ideal as a primary chemistry analyzer for small- to medium-size hospitals and laboratories or as a dedicated specialty analyzer for larger institutions. Automate and consolidate chemistry testing with Olympus’ 130 test menu including chemistry, urine chemistry, specific proteins, esoteric chemistries and tests for therapeutic drug monitoring, drugs-of-abuse, and thyroid function. With random access throughput of up to 400 photometric tests per hour (up to 800 with electrolytes), on-board menu of over 63 tests and user-definable sample handling options, the AU480e delivers efficiency for real world lab needs.

General Characteristics

Standardization
Only Olympus standardizes chemistry testing for low to very high-volume laboratories. This provides greater productivity, increased efficiency and lower cost for your lab.

Fast and reliable turnaround times

  • Up to 800 photometric tests per hour and up to 1200 tests per hour with electrolytes
  • Immediate STAT interrupt that gives you basic metabolic eight test panel results within five minutes

Walk away design saves operator time

  • 150-sample rack loading for peak workloads with continuous loading capability
  • 22-sample STAT carousel
  • Direct tube sampling for 3.0, 5.0, 7.0, 10.0 mL primary tubes and pediatric micro cup option
  • Multiple bar code capability provides easier and faster calibration with lower cost
  • Enhanced, reflex and repeat testing
  • Automated pre-dilution for urine and other specimens
  • Open design for direct connectivity to many lab automation systems


Automated reagent handling

  • ClearChem reagents are liquid and ready-to-use
  • Barcoded cartridges provides automated reagent management (on-board stability, expiration and calibration tracking)
  • All 60 R1 and 48 R2 reagent positions are open for random cartridge placement
  • State-of-the-art Advanced Calibration stores multiple calibration curves per test
  • Reagent Inventory management alerts operator by comparing on-board reagent test volume versus average daily workload
  • Automatic changeover from empty to fresh bottle
  • Multiple sized reagent cartridges hold from 100 to 6000+ tests to meet the needs of the laboratory

Efficient review of results

  • Choice of QC trending: Westgard multi-rule procedure, Twin plots, Levey-Jennings daily and day-to-day plots
  • Search function to retrieve data by individual sample and type of test (up to 100,000 patient files)
  • User-definable flags for abnormal results

Precision engineering for reliability and accuracy

  • Capacitance liquid level detection to ensure accurate pipetting for reagents and specimens
  • Clot detection and removal for sample probes
  • Crash protection for sample and reagent probes
    Exclusive spot photometric technology for precision enhanced optics
  • Micro sampling capabilities for pediatric and other special samples

User-friendly Windows XP software: Helps reduce training time

  • Single Screen system check: at-a-glance graphic dashboard for monitoring system status
  • Universal descriptive icons and color-keyed graphics
  • Customized User Menu: simplifies training and operation by staff
  • Online Operator's Guide and video: reinforce training with links, search and bookmarks
  • Software capabilities support CLIA, NCCLS and CAP compliance
  • Computer-displayed maintenance videos

Web-based services: Eliminates paperwork and increases reliability

  • SUPPORTVISION® remote diagnostics for virtual on-site support
  • Olympus Partner Advantage provides technical resource access, on-line product training with reagent ordering and tracking capability.

Maintenance: Automated for operational cost reduction

  • Five (5) minutes average daily operator maintenance
  • Programmable power-on and start-up
  • Advanced calibration: stores up to five calibration curves per test
  • Automated cleaning and system checks
  • Olympus dry-bath technology means no water bath maintenance
  • Minimum disposables:
    • Permanent glass cuvettes
    • ISE electrodes are warranted for six months
    • No sample or reagent tips to replace
AU680 Automated Chemistry Analyzer
AU480 Chemistry Analyzer

Reach a representative at (714) 734-8068, or email us with any questions!

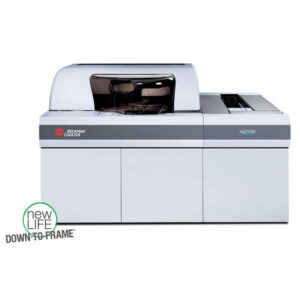

Beckman Coulter (Formerly Olympus) AU2700 Chemistry Analyzer

Analyzer Description

The Beckman Coulter AU2700 Chemistry system, formerly the Olympus AU2700, boasts over 95 assays with a maximum throughput of 1600 tests per hour. The AU family of systems are well regarded, open reagent, high quality chemistry systems that are considered one of the most popular chemistry systems on the market, in particular in the US laboratory marketplace.

General Description

Fast and reliable turnaround times

  • Up to 1600 photometric tests per hour and up to 2133 tests per hour with electrolytes
  • Immediate STAT interrupt with HCFA basic metabolic eight test panel results available within five minutes

Walk away design saves operator time

  • 300-sample rack loading for peak workloads
  • 22-sample carousel for STAT
  • Direct tube sampling for 3.0, 5.0, 7.0, 10.0 mL primary tubes and pediatric cups
  • Mixed bar code capability
  • Automated reflex and repeat testing
  • Automated pre-dilution for urine and other specimens
  • Easy connectivity for automation

Automated reagent handling

  • Reagents are liquid and ready-to-use
    Barcoded cartridges provide on-board management (random placement, on-board stability and calibration tracking)
  • All 48 R1 and 48 R2 reagent positions are open for third-party reagent use
  • Auto-calibration and auto-quality control
  • Automatic changeover from empty to fresh bottle
  • Multiple sized reagent cartridges hold from 100 to 6000+ tests to meet the needs of any size laboratory
  • Minimal reaction volume of 120 µL reduces reagent consumption
  • Reagent inventory tracking function predicts daily workloads

Efficient review of results

  • Choice of QC trending: Westgard multi-rule procedure, Twin plots, Levey-Jennings daily and day-to-day plots
  • Search function to retrieve data by individual sample and type of test (up to 60,000 patient files)
  • User-definable flags for abnormal results

Precision engineering for reliability and accuracy

  • Liquid level capacity detection to ensure accurate pipetting for reagents and specimens
  • Clot detection and crash prevention for probes
  • Exclusive spot photometric technology for precision optics

User-friendly Windows NT® software simplifies training and operation

  • Drop-down menus, icons, color-keyed graphics
  • User menu to customize operation
  • Operator’s guide with links, search, and bookmarks
  • Software capabilities support CLIA, NCCLS, and CAP compliance
  • Computer-displayed maintenance videos
  • Modem-linked technical support

Maintenance: Automated for minimum operator time

  • Programmable start-up
  • Automated washes and checks
  • Dry-bath technology means no water bath maintenance
  • Minimum disposables:
    • Permanent glass cuvettes
    • No sample or reagent tips to replace

Weight: 1,540 Lbs

Dimensions: 79 (W) x 45 (D) x 50 (H) inches

Beckman Coulter AU2700 Chemistry analyzer

Reach a representative at (714) 734-7401, or email us with any questions!

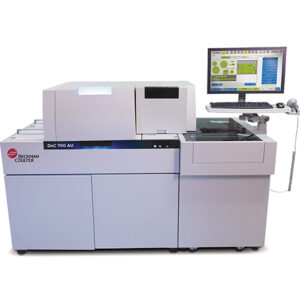

Beckman Coulter DXC 700 AU Chemistry Analyzer

Analyzer Description

Get the right results at the right time with one system. The DxC 700 AU clinical chemistry analyzer is the latest innovation in a line of reliable chemistry systems for the mid- to high-volume laboratory. The DxC 700 AU combines the best-loved (and time-tested) features of the popular DxC and AU series of clinical chemistry analyzers. This powerful combination delivers maximal uptime, high reliability and precise performance.

Specifications

Photometric Throughput with ISE (test/hour): 800/1,200 with ISE

Number of Onboard Assays with ISE: 63

Sample Volume: 1.0-25.0

Sample Load Capacity (Routine/STAT): 150 (15 racks x 10 samples), 22 samples by carousel

Clot Detection and Auto-clearing (Mechanism): Yes

Open Channel Capability: Yes

Software: Windows 10

Beckman Coulter DXC 700 AU

Reach a representative at (714) 734-8068, or email us with any questions!

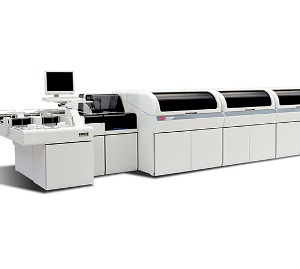

Beckman Coulter AU5800 Chemistry Analyzers

G

Give your high- and ultra-high-volume core laboratory a performance boost. Clinical chemistry analyzers in the AU5800 series are the fastest in the industry, processing up to 2,000 tests per hour with a full menu of assays, including Therapeutic Drug Monitoring (TDM) and Drugs of Abuse. Increase lab productivity with continuous operation, powerful throughput and scalable capacity up to four modules.

General Characteristics

Continuous operation with minimal downtime and easy maintenance

  • Complete replacement of sample and reagent probes, mixer bars, ISE and syringes in no more than three steps, no longer than 60 seconds
  • Perform routine maintenance easily, minimizing startup time

Two Optional High-Speed ISE Units

  • Single ISE with a maximum throughput of up to 900 tests/hr
  • Dual ISE flow cell with a maximum throughput of up to 1,800 tests/hr
  • Robust, long-life electrodes: warrantied for 6 months or 40,000 tests
  • Electrodes can be replaced individually
  • No preconditioning needed; electrodes are ready-to-use

Scalable capacity with a simplified and efficient workflow

  • Increase testing capacity as needed with the modular design of the AU5800
  • Connect up to four analytical modules depending on your volume requirements
  • Simplify technologists' tasks with intuitive and easy-to-perform daily management procedures

Powerful throughput with reduced analytical turnaround time

  • Maximize throughput with an intelligent sample management system that optimizes the processing of racks based on the tests ordered
  • Ensure quick turnaround time for those critical patients with STAT priority testing and auto-repeat of abnormal results
  • Configure your total laboratory solution with options to integrate AU5800 with pre-analytical automation, immunoassay and clinical IT
Beckman Coulter AU5800 Chemistry Analyzers

Reach a representative at (714) 734-8068, or email us with any questions!

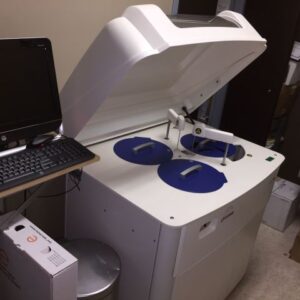

Diatron Pictus 700 Analyzer

Analyzer Description

Diatron P700 Analyzer is a fully automated, random access, small footprint floor chemistry analyzer. Innovatively designed with 2 reaction trays and robotic arms, the system can achieve a total throughput of up to 780 tests per hour. The P700 incorporates features usually only found in higher cost systems but without the operating expense. Designed using state of the art electronics, intelligent windows-based software, unique SW enhancements and high-performance modules. The system is a perfect combination of reliable hardware and easy to use interface software.

General Characteristics

Features

  • Efficiency – The Pictus 700 incorporates a 95 position patient sample tray reducing the number of required daily runs. It also has programmable auto dilution for out of range tests. The reagents are very stable requiring few calibrations thus saving time and money. The 72 reagent positions (75 w/ISE) and onboard refrigeration allow for many tests to be kept on the analyzer at the same time.
  • Cost Savings – The 700 does not need an expensive water treatment that requires expensive upfront cost and continual purchase of filters. More savings will be realized by utilizing low cost reagentcalibrator and controls reducing the overall cost per reportable result. Furthermore, the extended service pricing is comparatively low versus other models of this type.
  • Easy to Operate – The Pictus 700 utilizes Windows based software for its operation and is very intuitive with barcoding for sample and reagent identification. It also accepts many sizes of primary tubes. Periodic maintenance is minimal and is easy to perform.
  • Space Utilization – The 700, although a floor model, takes surprisingly little space in the laboratory.

Specifications

  • Up to 600 tests/hour, max. 720 tests/hour with optional ISE unit
  • Sample volume: 2 to 100 μl/tests (in increments of 0.2 μl)
  • Sample tray: 95 (5 racks x 19 positions) ID barcode equipped positions for routine
  • Stat and control samples and standard solutions
  • Maximum number of simultaneous tests: 36 double to 72 single reagent tests, + 3 with optional ISE unit
  • 1 to 3 reagents, 2 to 480 μl/tests each (in increments of 1 μl) final total solution volume 180 to 650 μl/test
  • Reagent bottle capacities: 72 cooled positions
  • Barcode Reader for reagents
  • Water consumption: Less than 5 l/h
  • Dual beam system
  • 160 reusable PMMA reaction cuvettes
  • Automatic pre-dilution and post dilution (ratio 1:5 to 1:100)
  • Full quality control: Levey-Jennings plots, Westgaard multi-rules
  • Windows-based software
  • Real time reagent inventory control
  • Real stat sample capacity
  • Power requirements: 110/230 V, 50/60 Hz, 1.4 kVA
  • Size (Width x Depth x Height): 97 cm x 67 cm x 100 cm, 38” x 26” x 39”
  • Weight: 190 kg, 419 lbs

Options

  • ISE Unit – Na+, K+ and CI- measurements. Other electrolytes on request
  • PC Requirements– PC compatible with Celeron 2.4 GHz, 256 MB RAM, 40GB Hard Disc or bigger, CD ROM, Super VGA 15” Color screen, with Microsoft Windows™ 8.1 or 10 Operating system.
  • Printers – Most printers supported by Windows can be connected. Printouts can be optimized by the customer. Results analysis, work list, patient sample list, quality control, calibration curves and more.
Diatron Pictus 700

Reach a representative at (714) 734-8041, or email us with any questions!

Diatron Pictus 500 Bench-top Analyzer

Analyzer Description

The Diatron Pictus 500 Bench-top Analyzer is a new, ergonomically designed, bench top Clinical Chemistry system, which has a high degree of automation to give assured result quality. The advanced Windows-based software, smart architecture and user-friendly interface ensures the P500 offers many benefits such as uninterrupted workflow, enhanced walk-away operation and remote access diagnostics.

General Characteristics

The P500 is a bench top, fully automated Clinical Chemistry system comprised of advanced Windows-based software, state of the art components and user-friendly interface provide a long life platform for analytical excellence. The system includes a full range of reagents, controls and calibrators.

Features

  • 95 sample positions
  • 72 single reagent positions
  • First results within 45 seconds
  • 5 open channels
  • Internal optional 4-module ISE
  • Optimized walk away operation (auto cal & blank accept)
  • Cost effective
  • Low water consumption (~2 L/h)
  • Minimal consumable usage 80 reusable PMMA reaction cuvettes
  • Extended calibration and long on-board stability
  • High throughput for a small footprint
  • Environmentally friendly
  • Easy to operate and learn
Diatron Pictus 500 Benchtop

Reach a representative at (714) 734-8041, or email us with any questions!

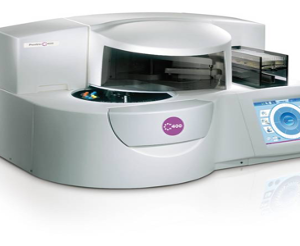

Horiba Pentra C400 Analyzer

Analyzer Description

The Pentra C400 is an extremely compact Clinical Chemistry bench-top analyzer. Its automation and continuous loading provide enhanced productivity in a user-friendly environment.

General Characteristics

Overview

  • 55 on-board assays
  • Innovative cassette format
  • Integrated workstation and validation station
  • Touch screen
  • Real-time viewing of your workflow

Features

  • Analysis Method Types:
  • Spectrophotometry: Colorimetry and Turbidimetry
  • Potentiometry: Direct (Serum or Plasma) and Indirect (Urine)
  • Up to 55 assays on board
  • Optional ISE Module (Na+, K+, Cl-)
  • Maximum Throughput: 420 test/h
  • FDA cleared

Sample Handling

  • Sample Capacity: 6 racks with 10 sample positions for primary tubes or cups
  • Continuous loading
  • Positive Sample Identification: Integrated Barcode Reader and Tube Presence Detector
  • Sample Integrity: Level, Shock and Clot Detection
  • Sample Collection Format: 0.7, 4, 5, 7 and 10 mL (diameter: 16mm)
  • Sample Specimen: Serum, Plasma, Urine, CSF, Whole Blood, Homogeneous Fluids
  • Sample Volume: 2 to 380 µL
  • Automatic Sample Dilution: from 1/2 to 1/22,500
  • ISE: 10 µL (Indirect) or 65 µL (Direct)
  • Automatic Post Concentration: from x2.0 to x 10.0
  • Automatic Re-run
horiba pentra analyzer

Reach a representative at (714) 734-8041, or email us with any questions!

Horiba Pentra C400 Analyzer

Analyzer Description

The Pentra C400 is an extremely compact Clinical Chemistry bench-top analyzer.

Overview

  • Fixed cycles provide continuous throughput of 90 colourimetric tests/hour
  • Optional high throughput ISE module (270 tests/hour)
  • Reagent management with unique “Pentra” cassette
  • Fully automatic cuvette management – 2 racks of 96 single use cuvettes
  • Dedicated waste compartment for used cuvettes and contaminated liquid
  • Integrated computer and cooling unit (Peltier)

Product Description

  • Analysis Method Types:
    • Spectrophotometry: Colorimetry and Turbidimetry
    • Potentiometry: Direct (Serum or Plasma) and Indirect (Urine)
  • 15 parameters per reagent tray
  • Optional ISE Module (Na+, K+, Cl-)
  • Maximum Throughput: up to 360 test/h (140 tests/h in standard configuration)
  • CE Marked

Sample Handling

  • Sample Capacity: 15 positions in refrigerated compartment
  • Dedicated stat position in Random access
  • Positive Sample Identification: Integrated Barcode Reader
  • Sampling Needle: Level, and Shock Detection
  • Sample Collection Format: 2, 3, 4, 5, 7 and 10 mL (diameter: from 13 to 6mm)
  • Sample Specimen: Serum, Plasma, Urine, CSF, Homogeneous Fluids
  • Sample Volume: 2 to 45 µL (0.1 µl increment)
  • Automatic Sample Dilution: from 1/2 to 1/30,625
  • ISE: 20 µL (Indirect) or 93 µL (Direct)
  • Automatic Post Concentration: from x2.0 to x 20.0
  • Automatic Re-run

Calibrator/Control Handling

  • Calibrator/Controls Positioning on Sample Tray in the Refrigerated compartment
  • Automatic Standard Dilution Series:
    • Dilution Factors: Main Direct 1/2 – 1/175
    • Dilution Factors: Main Indirect 1/176 – 1/30 6258

Reagent Handling

  • 15 parameters on board in a closed refrigerated area (8-15°C)
  • Positive Reagent Identification: Integrated Barcode Reader
  • Reagent Needle: Level Detection and shock detection
  • Reagent management with cassettes: Automated Reagent On-board Stability Check plus continuous test countdown check by capacitive effect.
  • Reagent Volume: from 20 to 350 µL

Reaction System

  • Reaction Volume: 120 to 450 µL
  • Reaction Temperature: Air bath at 37°C
  • Photometer Reaction Cycle:20 seconds
  • Homogenization with Stirring Paddle
  • Reaction Time: 1 to 29 cycles
  • Disposable Acrylic Cuvettes
  • Automatic Cuvette Changer
  • Cuvette Capacity: 192 cuvettes (2 racks of 96 cuvettes)
  • 7 Integrated Calculation Algorithms
horiba pentra analyzer

Reach a representative at (714) 734-8041, or email us with any questions!
