Hematology Analyzers

More Info

From the choice of equipment to installation costs, setting up or upgrading a laboratory and its equipment can be daunting. To help in cost containment, ClearChem’s expert-trained service staff offers high-quality, like-new refurbished instruments and ancillary equipment for the entire laboratory. All of our equipment is licensed and certified to guarantee satisfaction and comes with a full one-year warranty.

Comprehensive, High-quality Hematology Solutions

Our Hematology analyzers deliver precise, accurate results faster. Use our hematology analyzers to enhance your medical laboratory operations and improve patient care.

Hematology reagents, controls, and calibrators are also available through ClearChem. Give us a call or email us to inquire more.

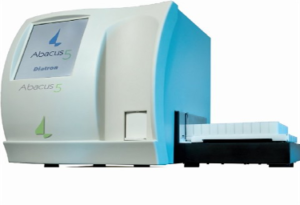

Diatron Abacus 5 Hematology Analyzer

Analyzer Description

Abacus 5 with automated 5 part quantitative differential is the latest and most sophisticated model of Diatron’s range of Hematology Analyzers. The system utilizes a Diatron patented long-life diode laser-based optical measurement technology that ensures optimal performance using a high-tech flow cuvette.

General Characteristics

Throughput: 60 tests/hr

Sample: Whole human blood

Sample volume: 100ul

Sampling method: closed and open tube sampling, auto-sampler

Parameters: 22 CBC parameters including 5 part WBC differential

Measurement method: Optical method for 5-part WBC differential parameters and volumetric impedance method for standard CBC parameters

Reagent sensing: Yes

Reagents: Diatro Dil-Diff, Diatro Lyse-5P, Diatro.Diff-5P

Clog prevention: Yes

Calibration: manual and Automatic mode

Multi-user mode: Multilevel user modes with user ID

User interface: 600x800 color graphics LCD, touch screen

Data storage capacity: 100.000 records

External printing: Vis USB port, any Windows compatible printer

External keyboard: Via PS/2 or USB

Auto-sampler: Factory option, for closed sample tubes with integrated barcode reader and sample mixer

Reach a representative at (714) 734-8041, or email us with any questions!

Specifications:

Depth: 45 cm

Height: 50 cm

Width: 40 cm

Weight: 35 kg with auto-sampler 45 kg

Horiba ABX Micros 60 Hematology Analyzer

Analyzer Description

The Horiba ABX Micros 60 is a fully automated hematology analyzer used for in-vitro diagnostics testing of whole blood specimens, platelet PRP samples, and whole blood component concentrates. The HORIBA analyzer uses impedance technology and photometry as measurement methods, as well as stepper motor technology which enables the system to operate without a compressor.

General Characteristics

The Horiba hematology analyzer comes packed with key features such as automatic probe wipe, 8 or 16 parameters including three part differential and histograms, single button operator interface, usage of the minipack combining waste and reagents, smart card based memory storage, and micro sampling of 10µL of whole blood per cycle.

The ability to identify samples, programmable high and low limits for patients, and programmable flag sensitivity are other features which make the ABX Micros 60 analyzera better choice. The Horiba hematology analyzer can provide sample tests either in closed or open tube modes, allowing a throughput of up to 60 samples per hour.

Designed for reliability, less maintenance and noise, as well as increased precision, the HORIBA ABX Micros 60 Hematology Analyzer offers premium performance in every analysis application.

Features

  • Measurement methods: Impedance technology, photometry.
  • Liquid valves (without pinching): Reliability and increased precision
  • No compressor (stepper motor): Reliability, less maintenance and noise
  • Smart card-based memory storage (optional)
  • No compressor (stepper motor technology)

Reach a representative at (714) 734-8041, or email us with any questions!

Specifications

Dimensions – 16.5” x 14” x 12.5”

Weight – 31 lbs.

Throughput – 60 samples per hour open tube, 55 samples/Hr. closed tube

Sample Stability – 24 hours

Histograms – LMG (WBC), RBC, and PLT

Sample volume CBC (fingerstick) mode: 10ul

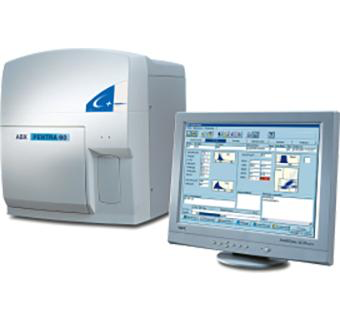

Horiba ABX Pentra 60C+ Hematology Analyzer

Analyzer Description

  • Data management on stand-alone PC.
  • Micro-sampling from whole blood (CBC: 30 µL - DIFF: 53 µL).
  • Cytochemistry, Impedance (real cell volume measurement) & Optical (analysis of the internal cellular structure by measuring light absorbance) - DHSS* Technology.
  • Perfect homogenization of blood samples with reagents - MDSS** Technology.

Features

  • Throughput: Up to 60 samples/hour.
  • Reagents: Only 4 onboard reagents and 1 diluent.
  • Perfect differentiation of the 5 WBC sub-populations with DHSS* Technology.
  • 3 histograms for RBC, BAS/WBC and PLT together with the 5 DIFF Matrix.
  • Basophils counted through specific channel.
  • High resolution matrix.

* DHSS: Double Hydrodynamic Sequential System

** MDSS: Multi-Distribution Sampling System

Reach a representative at (714) 734-8041, or email us with any questions!

Horiba ABX Pentra XL80 5 Part Diff with Autoloader

Analyzer Overview

  • CBC with 5-part Differential including flagging for immature cells
  • Advanced technologies for mixing and sample analysis ensuring accurate results
  • Processes up to 80 samples/hr and provides results in approximately 60 seconds
  • Autoloader holds up to 100 samples with random continuous access
  • STAT mode for critical samples

Features

  • 20 parameters
  • Whole blood micro-sampling (CBC: 35 µL, Plus Diff 53 µL)
  • Cytochemistry, Impedance (real cell volume measurement) & Optical (analysis of the internal cellular structure by measuring light absorbance) - DHSS* Technology
  • Perfect homogenization of blood samples with reagents - MDSS** Technology
  • Automatic Sample Re-run
  • Reagents: Only 4 reagents plus cleaner
  • Perfect differentiation of the 5 WBC sub-populations with DHSS* Technology
  • 3 histograms for RBC, BAS/WBC and PLT together with the 5 DIFF Matrix
  • Basophils counted through specific channel
  • High resolution matrix includes the determination of 2 additional subpopulations (% and #): Atypical Lymphocytes (ALY***) and Large Immature Cells (LIC***)
  • Customized Dilution Ratio (CDR)
  • Integrated Workstation and Validation Station

* DHSS : Double Hydrodynamic Sequential System
** MDSS : Multi-Distribution Sampling System
*** RUO parameters (Research Use Only)

Reach a representative at (714) 734-8041, or email us with any questions!

As A Certified Medical Device Manufacturer

licensed through the California State Department of Public Health, FDA Division, our remanufactured equipment is guaranteed to meet the most stringent requirements of this governing body. Our superior supply-chain process allows us to provide a one year parts, labor, and travel warranty. ClearChem Diagnostics takes pride in ensuring each re-certified system will look and perform as new!

You can view our licenses here
